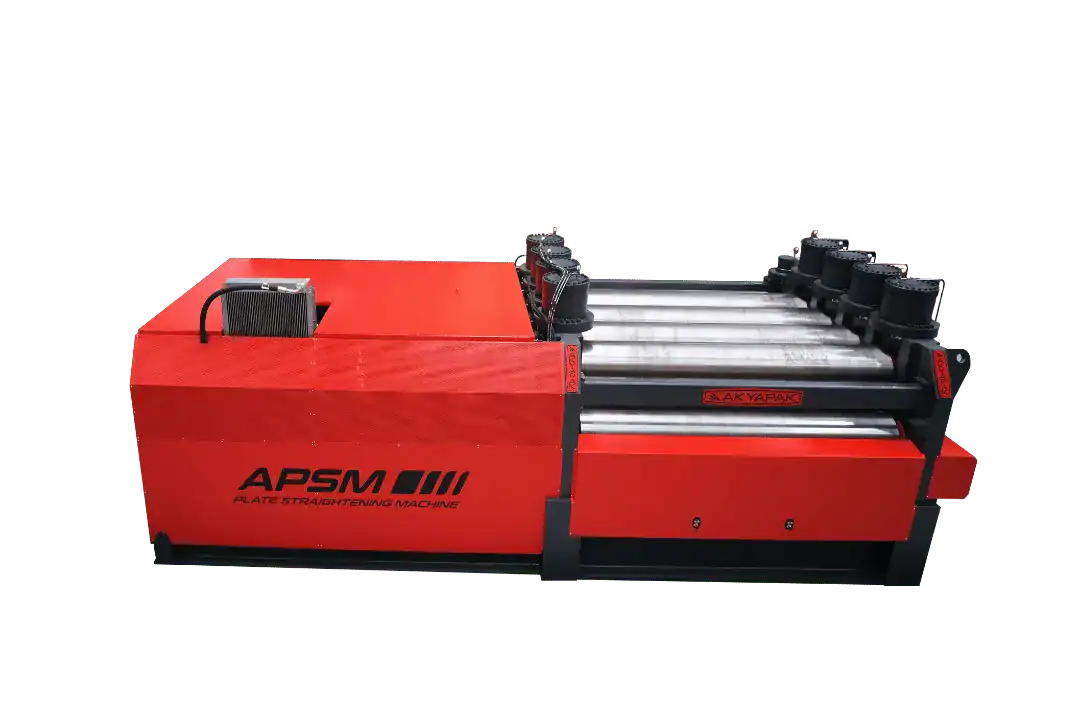

Akyapak Plate Straightening Machines
The AKYAPAK APSM product line is engineered to straighten metal plates with varying thicknesses between 8 mm (.34” inches) and 60 mm (2.36” inches) and widths between 500 mm (20” inches) and 3000 mm (10’ feet). With its large capacity range, the APSM offers considerable flexibility for processing various metal plate sizes, making it an ideal choice for industries involved in metal fabrication. This product line employs advanced technology to straighten even the thickest metal plates accurately and reliably.
Capabilities
The APSM can be tailored with 5, 7 or 9-roll configurations depending on how quickly you need the plate to be straightened.
The Ideal Solution for Long-Term Use
The sturdy ST-52 steel structure, the quality and size of the correction rolls, and the durable bearings all ensure that AKYAPAK APSM machines are designed for many years of reliable use. Due to their strong correction press force, these machines, with their sturdy and lasting builds, are ready to offer long-term service to its users.
Robust Frame
APSM machines are constructed utilizing FEM analysis, ensuring a robust and reliable frame. They are made of certified ST-52 high-quality welded steel. This particular design lessens tension during straightening tasks, making the machines not only safer but also extending their service life.
Straightening Rolls
C60 quality rolls, based on established industry standards, can be additionally strengthened using a process called induction hardening. This boosts their hardness levels to 50-55 HRC, which makes them robust and long-lasting. Following this, they are polished, enhancing their appearance with a sleek, glossy finish.
Control Panel
The control panel is a functional and straightforward interface that allows users to manage material rolling from all sides of the machine. It comes in two types, standard and CNC, with a digital screen, control buttons and features that can be varied according to selected optional features
