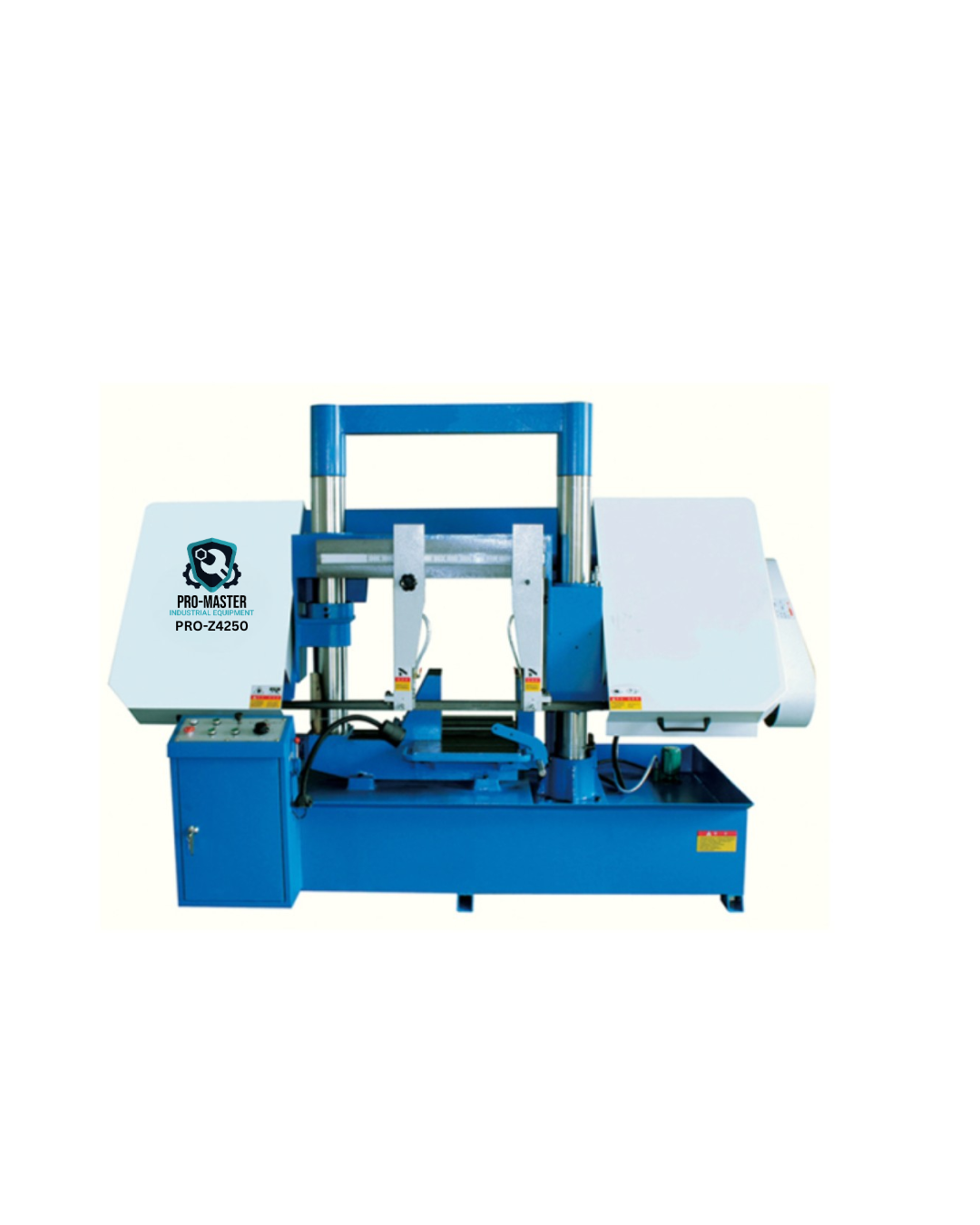

Pro-Master Band Saw PRO-Z4250

Double column structure vertical lifting with high stability.
Saw frame travels across solid dual-column guides.
Rigid, adjustable saw blade guides prevent lateral escape of the saw blade and ensure maximum angular accuracy.
Ideally positioned control panel within comfortable reach on top of the saw frame.
At the end of each sawing cycle, the saw blade frame will automatically return to the home position.
Throttle valve allow variable saw frame feed.
Two cutting speeds for a wide spectrum of materials and workpiece diameters.
Manually adjustable workpiece clamping and linear stop.
Coolant system.

SKU: PRO-Z4250 Category:
Description



Specifications GH4250
Cutting capacity 500-500x500mm
Blade size 5800x41x1.3mm
Blade speed 27, 45, 69m/min
Clamping type Hydraulic
Main motor power 5.5kW
Motor hydraulic 0.75kW
Coolant pump 0.125kW
Overall dimension 2800x1300x2000mm
Packing size 2850x1350x2150mm
N.W. 1900kg
