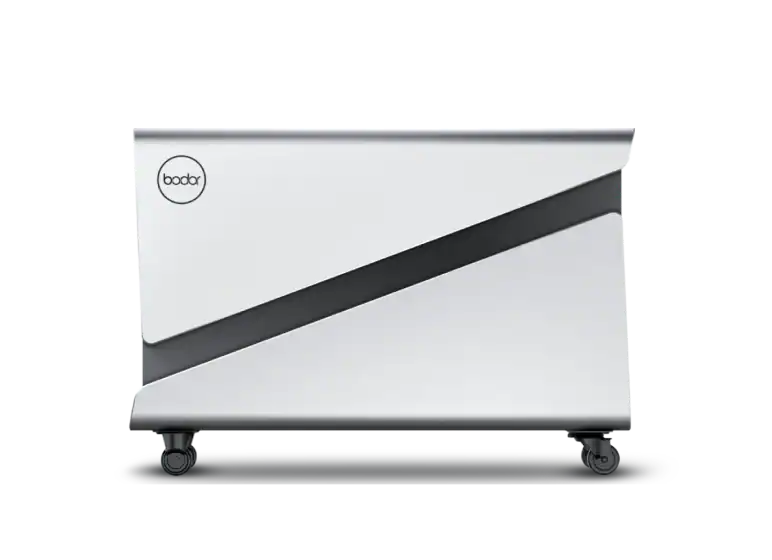

Bodor Pro 1500 Self-Cooling Handheld Laser Welder
Redefining Self-Cooling
Revolutionising Handheld Welder
24/7 Stable Operation
Self-Cooling
Continuous Light Output
Constant Temperature Suitable for Worldwide
In extreme environments with 90% air humidity, Pro 1500 can provide a stable and exceptional welding experience.
High Efficiency for Different Work Cases
One knob, Full Control
With one knob, you can adjust and store your customized welding solutions effortlessly. The all-in-one control knob integrates indispensable functions to facilitate your welding projects.
Stable Performance Always
Our Pro 1500 can maintain stable performance in harsh environments. Tested by international laboratories, it can continuously output light between -20 and 60 degrees Celsius, as well as up to 90% relative humidity.
Compact Size, Highly Portable
Featuring a lightweight design and a coverage area of 0.24 square meters, Pro 1500 offers ultimate flexibility and portability, enabling you to start welding without being hampered by space limitations.
High Performance
Compact Appearance
Compared to traditional water-cooling welders,
the self-cooling handheld laser welder does not have an internal water tank, resulting in a smaller size and lighter weight.
This makes it easier for users to handle complex welding tasks in different work locations.
Smaller Size
Larger Potential
The Bodor self-cooling handheld laser welder
occupies only 0.24㎡ of floor space.
Its iconic small size has great potential due to its intelligent temperature control technology.
More Combinations More Choices
It is equipped with specialised welding/cutting nozzles, suitable for various processing scenarios, meeting diverse customer needs.
Applicable Industries
Widely applied in kitchenware, sheet metal processing, stainless steel products, air ducts, shelves, crafts, stair handrails, enclosures, furniture appliances and other industries.
-
Cooling Method
Self-Cooling
-
Powers
1500W
-
Overall Dimensions
850mm×420mm×570mm
-
Operating Temperature
-20℃~60℃
-
Storage temperature range
-25℃~65℃
-
Fiber Length
10m
-
Welding Thickness (CS)
5mm
-
Welding Thickness (SS)
5mm
-
Welding Thickness (AL)
4mm
-
Operating Voltage
200V-240V
-
Operating Frequency
50Hz/60Hz
-
Weight
65kg
-
Welding Thickness (Brass)
2mm
