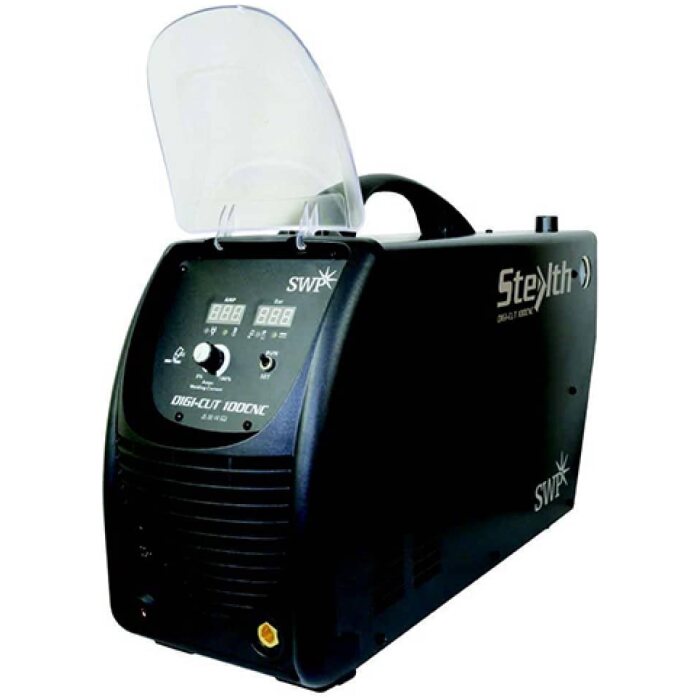

DIGI-CUT 100 CNC (CW PC7200H)
DIGI-CUT 100 CNC
Three Phase
Features
• 45mm production cut
• Auto over voltage, over temperature
and over current protection
• Includes air pressure regulator
• Contact arc striking
• PC7200H plasma
torch included
- Cooling Air
- Overall dimensions (mm) 630 x 240 x 445
- Weight (kg) 30.5
- Accessories included 3m earth return lead
SKU:
9032H
Category: Plasma Cutters
Description
DIGI-CUT 100 CNC
Power Supply Voltage (V) 3-380/400/440V±10%
Frequency Hz 50/60
Rated input current (A) 28
Rated input power (Kw) 14.5
Adjustment range of current (A) 20~100
Max no-load voltage (V) 420
Duty cycle (40ºC / 10 minutes) 100A @ 80%
Severance Cut for Carbon Steel (mm) ≤60
Carbon Steel ≤45
Optimal cutting Stainless Steel ≤45
thickness (mm) Aluminium ≤36
Copper ≤20
Dimensions (mm) L x H x W 630 x 240 x 445
Protection class IP23
Insulation class H
Net weight (Kg) 30.5
Cooling method AF
