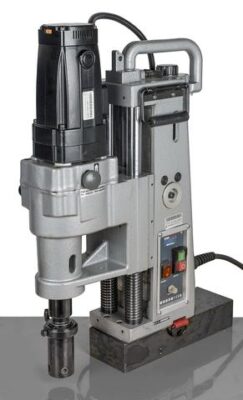

HMT MAX200 MAG DRILL, MT4 (200MM Extra Large broaching Capacity)

6,627.76 Inc Vat

HUGE POWER AND MAGNET HOLD TO MAKE LIGHT WORK OF HEAVY ENGINEERING TASKS

The Ultimate Magnetic Drill for the largest possible broaching, drilling and Countersinking tasks. Fantastic power and magnetic adhesion make this Mag Drill a world beater for heavy duty engineering tasks.

• Designed for heavy portable engineering works

• Huge Power 3800 Watt Motor

• High precision Twin column slideway system

• Up to 200mm Broach Capacity

Each machine comes in a metal, heavy duty, wheeled case with MT4 broaching arbor, hex keys, safety strap and internal coolant system.

Description

Technical Specification

CUTTER SIZE RANGE 12-200mm
MAX CUTTER LENGTH 200mm
TWIST DRILL RANGE 12-50mm
TAPPING RANGE N/A
COUNTERSINKING 31-80mm
REAMING 39mm
LENGTH 480mm
WIDTH INC HANDLES 260mm
HEIGHT 660-840mm
STROKE 280mm
WEIGHT 53kg
MAGNET (L x W) 330x110mm
MAGNETIC FORCE 3900kg
MOTOR POWER 3800W
SPEED RPM (No Load) 1)70-150; 2)170-410 RPM
SPINDLE MT4
ARBOR Weldon XL 32mm 11/4”
TAKES CHUCK Yes
WARRANTY 1 Year
