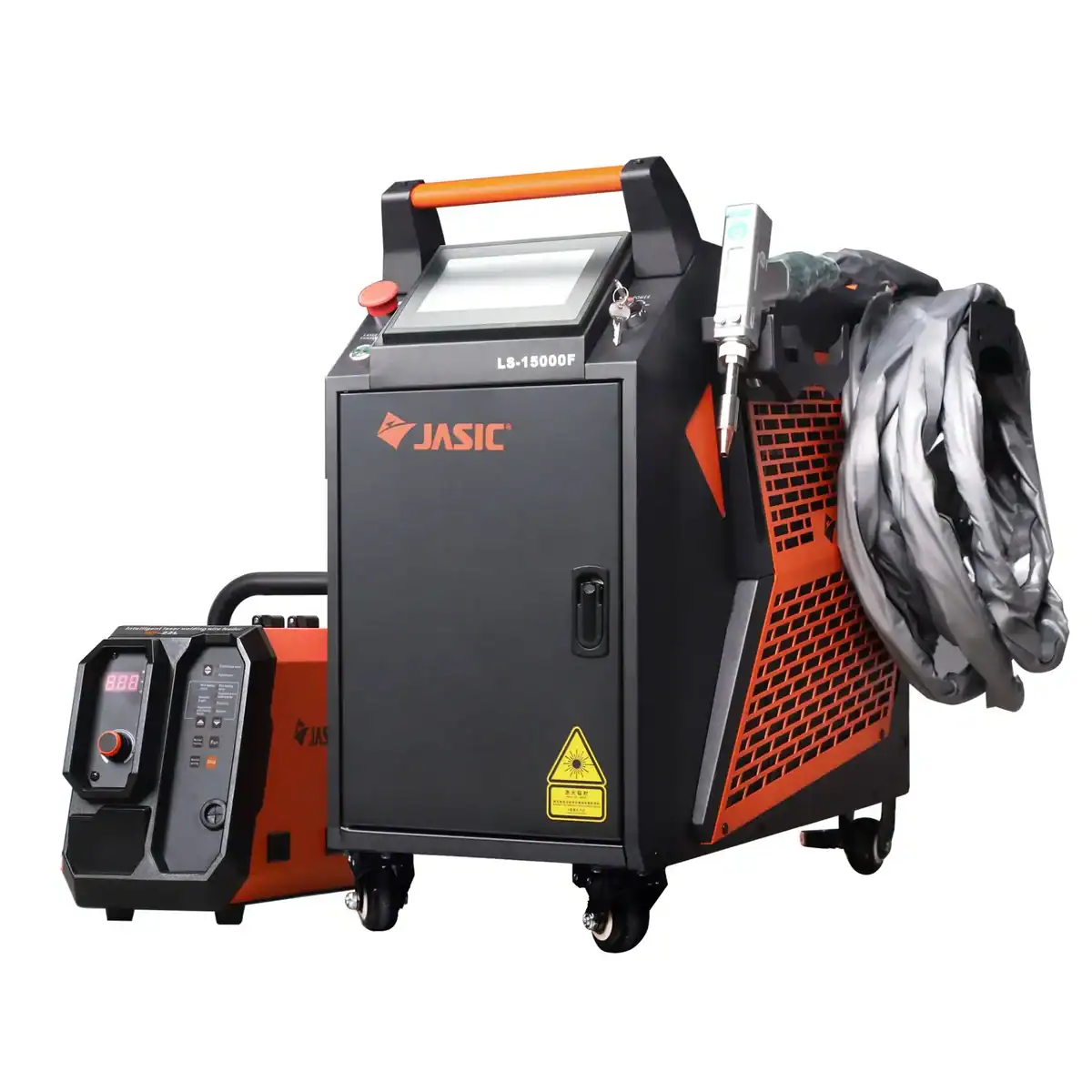

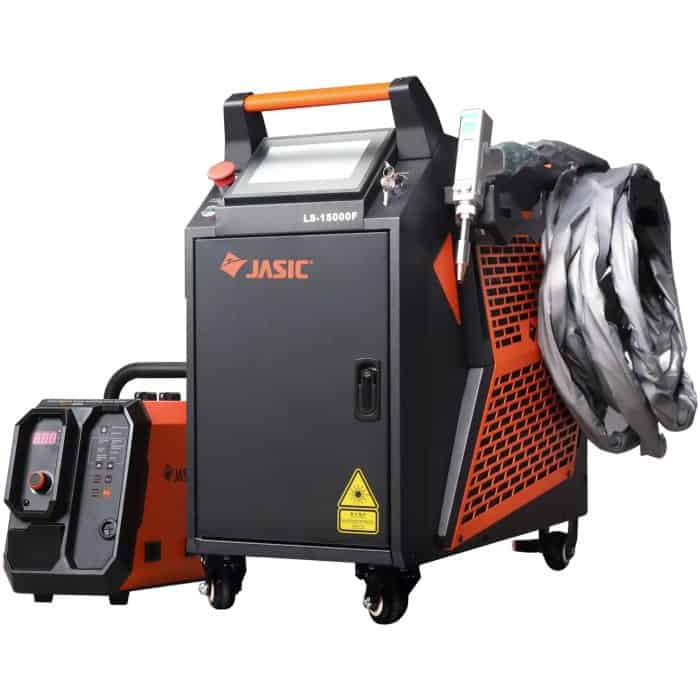

Jasic 3-in-1 Handheld Laser Welding Machine

The LS-15000F & LS-20000F are 3-in-1 handheld laser welding machines that handle most thin sheet metal fabrication needs, backed by JASIC’s 3-year warranty.
• Versatile – welding, cutting, and cleaning
• Rapid and cost-efficient, reducing the need for further treatments.
• Low training requirement compared to manual MIG, TIG, & plasma cutting.
• Small footprint with great mobility and flexibility; extended work perimeter.
• Quality laser source with 10x electro-optical conversion efficiency than solid YAG laser; pump source has over 100k hours lifespan

Model		LS-15000F (G4J801)		LS-20000F single wire (G4J901)/ LS-20000F dual wire
Input power supply		AC220V（±10%）50Hz		AC220V（±10%）50Hz
Input power		5.8 kW		7.8 kW
Center wave length		1080±10 nm		1080±10 nm
Electro-optical conversion eficiency		≥40%		≥40%
Laser power		1500 W		2000 W
Fiber cable length		12 m		12 m
Cooling method		Water cool		Water cool
Single wire welding and self fusion welding	Material	Stainless steel/ carbon steel	Aluminum alloy	Stainless steel/ carbon steel	Aluminum alloy
	Scan width	0~6 mm	0~6 mm	0~6 mm	0~6 mm
	Penetration	0.5~3 mm	0.5~3 mm	0.5~4.5 mm	0.5~4.5 mm
	Welding thickness	0.5~5 mm	0.5~5 mm	0.5~6 mm	0.5~6 mm
	Welding wire diameter	0.8 & 1.0 &1.2 &1.6 mm	1.2 &1.6 mm	0.8 &1.0 &1.2 &1.6 mm	1.2 &1.6 mm
	Shielding gas	Argon/nitrogen(≥3bar)
	Welding gap range	≤Welding wire diameter
Double wire welding	Material	Not recommended		Stainless steel/ carbon steel	aluminum alloy
	Scan width			5~8 mm	5~8 mm
	Penetration			3~5 mm	3~5 mm
	Welding thickness			3~6 mm	3~6 mm
	Welding wire diameter			1.2&1.6 mm	1.2&1.6 mm
	Shielding gas			Argon/nitrogen(≥3bar)
	Welding gap range			≤Welding wire diameter
Cutting	Recommended cutting thickness(mm)	≤3 mm		≤5 mm
	Max cutting thickness(mm)	5 mm		6 mm
	Shielding gas	Argon/nitrogen (4 bar ≤ gas pressure ≤ 7 bar)
Cleaning*	Cleaning speed	50 mm/s		50 mm/s
	Standoff distance	15 cm (F150 focusing lens for BW101-GS) 60 cm (F600 focusing lens for BW101-GS) 15 cm (F150 focusing lens for SUP23T) 40 cm (F400 focusing lens for SUP23T) 80 cm (F800 focusing lens for SUP23T)
	Max. cleaning width	0~10 mm(F150 focusing lens for BW101-GS) 0~80 mm(F600 focusing lens for BW101-GS) 0~30 mm(F150 focusing lens for SUP23T) 0~60 mm(F400 focusing lens for SUP23T) 0~120 mm(F800 focusing lens for SUP23T)
	Shielding gas	Use oil-free and moisture-free gas; gas pressure≥3 bar; other inert gases
Water tank capacity(L)		8 L		8 L
Operating temperature		-10℃~40℃		-10℃~40℃
		≤7℃，need to use antifreeze		≤7℃，need to use antifreeze
Operating humidity		≤70% at 40℃ ；≤90% at 20℃		≤70% at 40℃ ；≤90% at 20℃
Power source weight		85 kg		92 kg
Package weight		103 kg		110 kg
Power source dimensions		773410737 mm		773410737 mm
Package dimensions		8654751035 mm		8654751035 mm
Wire feeder weight		11.5 kg		11.5 kg(single wire) 30 kg(double wire)
Wire feeder package weight		17.3 kg		17.3 kg(single wire) 33 kg(double wire)
Wire feeder dimensions		628240340 mm		628240340 mm(single wire) 575296832.5 mm(double wire)
Wire feeder package dimensions		890320430 mm		890320430 mm(single wire) 665335980 mm(double wire)

*: The cleaning parameters of the two guns, BW101-GS and SUP23T, are different.

Packing List

• Handheld laser welding machine: LS-15000F/LS-20000F – 1 set
• Earth clamp + 8m cable + 2-pin female connector – 1 pc
• Wire feeder with 2 pcs 0.8-1.0 V type rollers – 1 set
• Wire feeder accessories (liners, power cable, communication cable) – 1 bag
• Accessory box (divided into three layers) – 1 box
