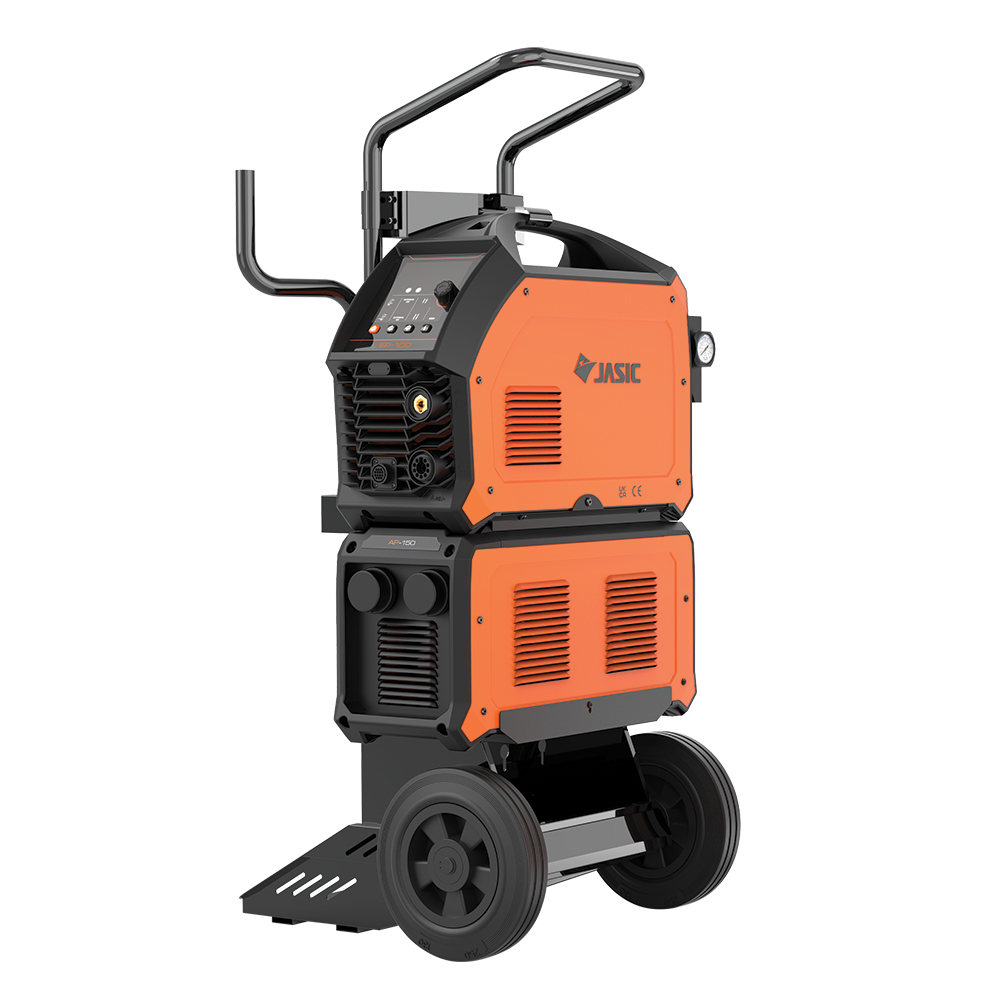

Jasic EVO Plasma Cut 100 NON-HF c/w Compressor 400V
€3,308.33 Inc Vat
The Jasic EVO CUT 100SC is a high-performance digital inverter plasma cutter, designed with advanced inverter technology for exceptional cutting performance.
The EP-100SC comes complete with integrated compressor making it the ideal mobile solution where workshop compressed air is not available.
Its ClearVision display ensures excellent visibility in any lighting, while the digital encoder provides precise and effortless parameter adjustment.
A robust electrical architecture delivers an extended duty cycle and outstanding reliability, even in the harshest conditions—reinforced by an IP23 protection rating.
Auto sleep mode ensures industry-leading energy efficiency, while the mesh cutting facility enhances performance when working with mesh and perforated materials.
KEY FEATURES
- Rugged, ergonomic design
- ClearVision technology
- HF stabilising technology
- SurePlasma technology for consistent arc ignition performance with different torch lengths
- Mesh cutting, 2T/4T, non HF arc ignition and pilot arc
- Gas check, postflow time setting, cutting torch length setting
- Generator friendly
- Quick factory reset; auto sleep mode
- ABAP: Active Balancing Air Passage
- Fan on demand
- Key power electronic component protection
- Overcurrent and overheat protection
- USB Type-C port for software updates and device charging
- 14 Pin CNC interface
- Supplied with integrated compressor and trolley
TECHNICAL DATA
| Input voltage | 3PH, AC400V±l5%, 50/60Hz |
| Rated input power | 18kVA |
| Rated input current Imax | 24.3A |
| Rated input current leff | 14.5A |
| Current range | 20-100A |
| Rated OCV | 310V |
| Rated duty cycle @ 40ºC | 100A @ 40% |
| Clean cut (carbon steel)/@400mm/min | 25mm |
| Severance (carbon steel) | 35mm |
| Pierce cut | 20mm |
| Minimum air pressure | 3 Bar (43psi) |
| Minimum gas flow | 5.3CFM (150 Ltr/min) |
| Efficiency | ≥85% |
| Idle state power | ≤50W |
| Power factor | ≥0.9 |
| Protection class | IP23S |
| Insulation class | H |
| Arc ignition | Non HF |
| Dimensions LxWxH | 626 x 230 x 734mm |
| Weight | 44Kg |
* Generator must have AVR
STANDARD ACCESSORIES
6m UPH-125 Cutting Torch, 3m Earth Clamp, Compressor, Trolley
OPTIONAL ACCESSORIES
14 Pin CNC Plug
