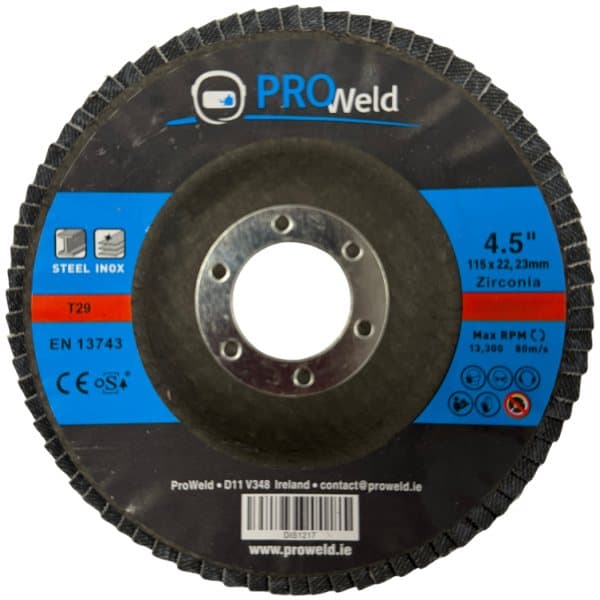

ProWeld Flap Disc
Price range: €2.50 through €350.00 Excluding Vat

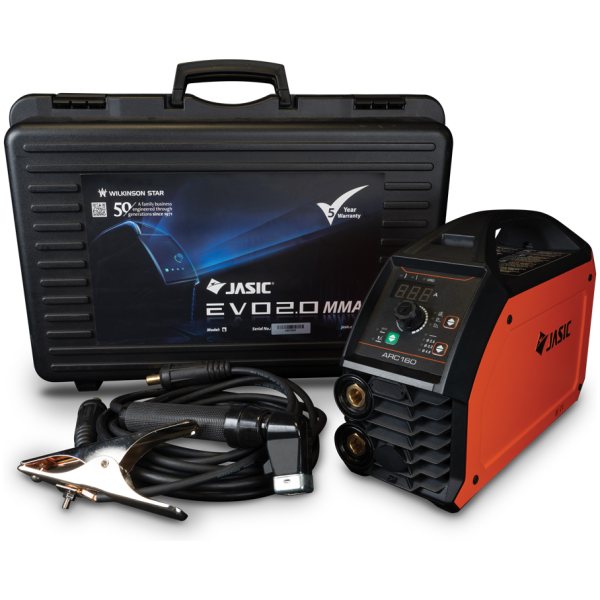

Jasic EVO POWER ARC 160 (including case and MMA leads) 230V
€357.00 Excluding Vat

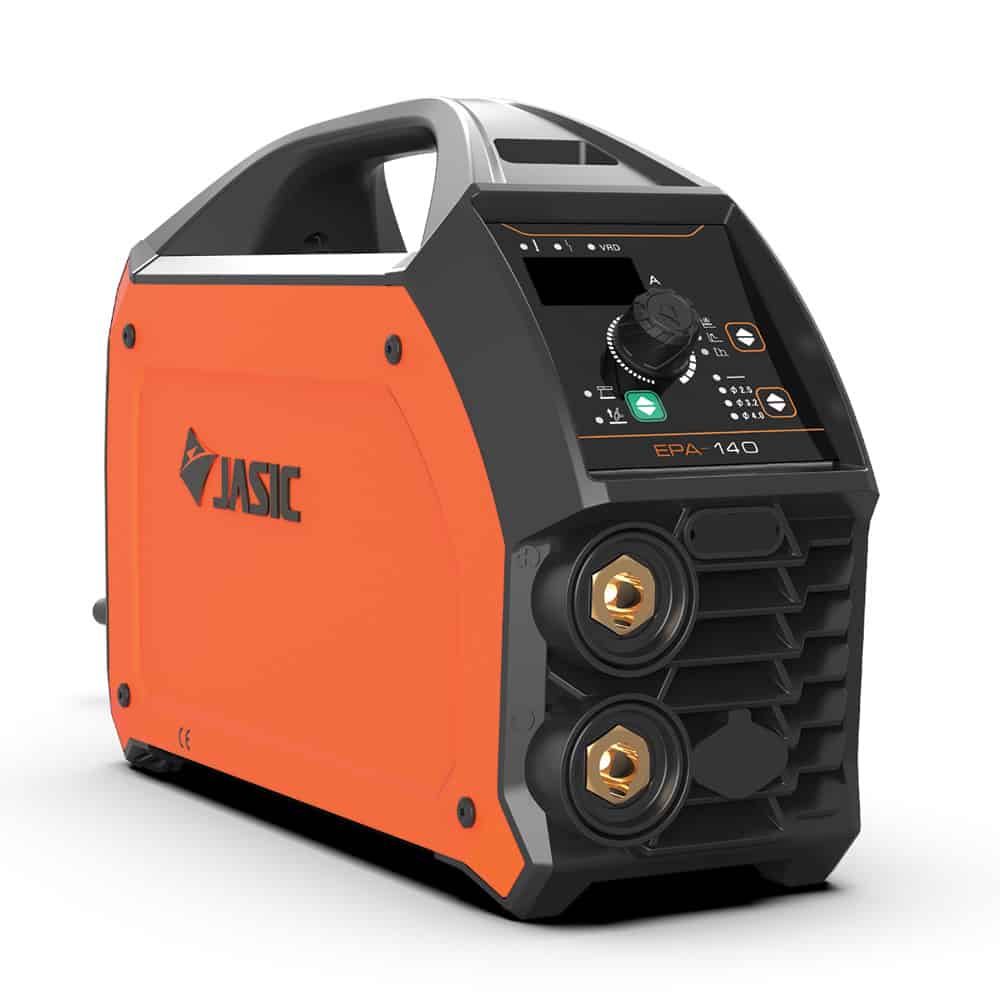

Jasic EVO POWER ARC 140 230V
€243.60 Excluding Vat
The EVO POWER ARC 140 delivers professional grade build quality and performance at an accessible price point.
Equipped with advanced inverter technology and MMA parameter control, it combines a compact, ergonomic design with simple operation, making the EVO POWER SERIES an ideal choice for site maintenance teams and hobbyists alike.
Description
KEY FEATURES
- Rugged, ergonomic design
- Intelligent synergic control
- Smart Lift TIG
- Anti-stick, adjustable hot start and arc force
- ABAP: Active Balancing Air Passage
- Fan on demand
- Voltage Reduction Device (VRD)
- Key power electronic component protection
- Overcurrent and overheat protection
- 35-50mm Cable sockets
TECHNICAL DATA
| Input voltage | AC 230V, 50/60 Hz | |
| No load voltage | 62V | |
| MMA | Ieff | 13.5A |
| Rated input power | 6.3kVA | |
| Current range | 20-140A | |
| Rated duty cycle @ 40ºC | 25% | |
| TIG | Ieff | 9A |
| Rated input power | 4.2kVA | |
| Current range | 10-140A | |
| Rated duty cycle @ 40ºC | 25% | |
| Efficiency | 85% | |
| Power factor | 0.64 | |
| Idle state power | 23W | |
| Protection class | IP23S | |
| Insulation class | H | |
| Dimensions LxWxH | 370 x 125 x 255mm | |
| Weight | 5.5Kg | |
| Recommended generator size* | 10kVA | |
* Generator must have AVR
