Jasic EVO POWER ARC 160 (including case and MMA leads) 230V
€398.15 Inc Vat
Jasic EVO POWER TIG 200 (including case) 230V
€759.53 Inc Vat
Jasic EVO POWER ARC 180 (including case and MMA leads) 230V
€439.73 Inc Vat

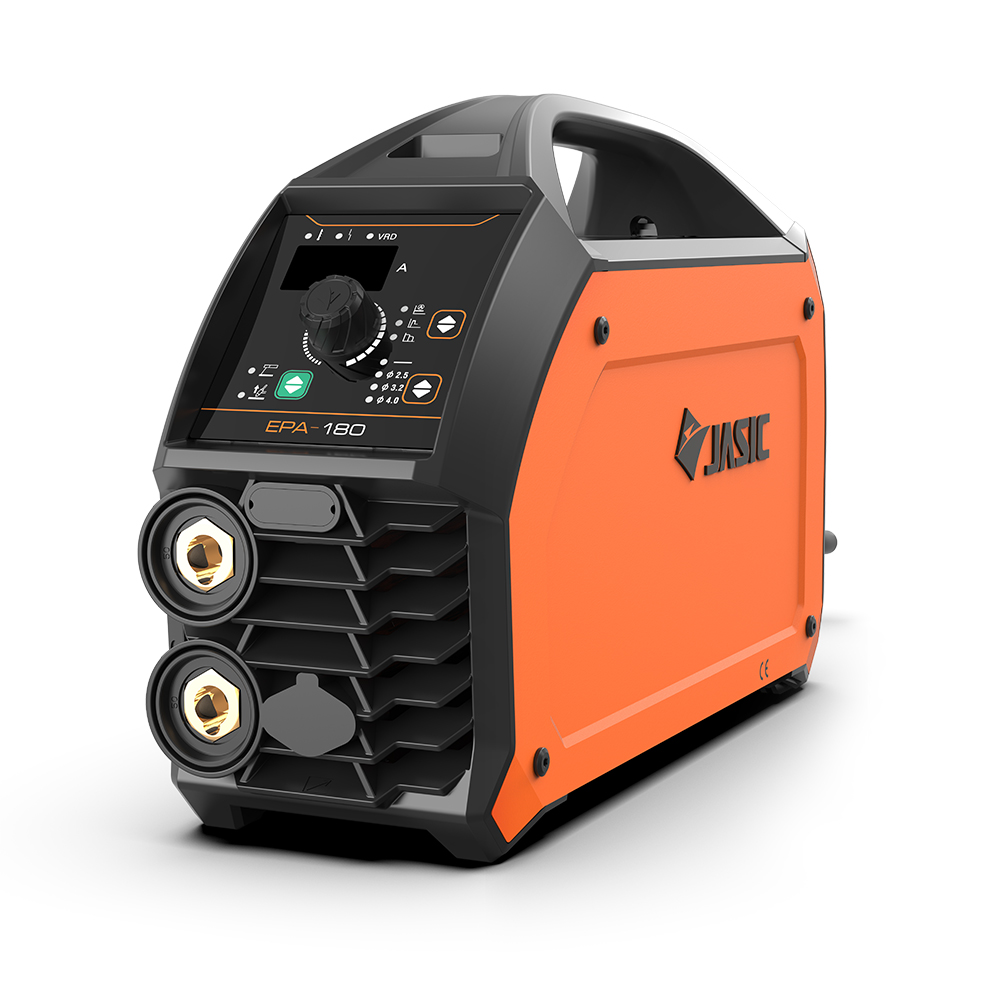

The EVO POWER ARC 180 delivers professional grade build quality and performance at an accessible price point.
Equipped with advanced inverter technology and MMA parameter control, it combines a compact, ergonomic design with simple operation, making the EVO POWER SERIES an ideal choice for site maintenance teams and hobbyists alike.
Description
KEY FEATURES
- Rugged, ergonomic design
- Intelligent synergic control
- Smart Lift TIG
- Anti-stick, adjustable hot start and arc force
- ABAP: Active Balancing Air Passage
- Fan on demand
- Voltage Reduction Device (VRD)
- Key power electronic component protection
- Overcurrent and overheat protection
- Complete with protective case and MMA leads
TECHNICAL DATA
| Input voltage | AC 230V, 50/60 Hz | |
| No load voltage | 78V | |
| MMA | Ieff | 15.9A |
| Rated input power | 8.8kVA | |
| Current range | 20-180A | |
| Rated duty cycle @ 40ºC | 20% | |
| TIG | Ieff | 11.5 |
| Rated input power | 6.5kVA | |
| Current range | 10-180A | |
| Rated duty cycle @ 40ºC | 25% | |
| Efficiency | 85% | |
| Power factor | 0.64 | |
| Idle state power | 26W | |
| Protection class | IP23S | |
| Insulation class | H | |
| Dimensions LxWxH | 370 x 125 x 255mm | |
| Weight | 5.5Kg | |
| Recommended generator size* | 13kVA | |
* Generator must have AVR
STANDARD ACCESSORIES

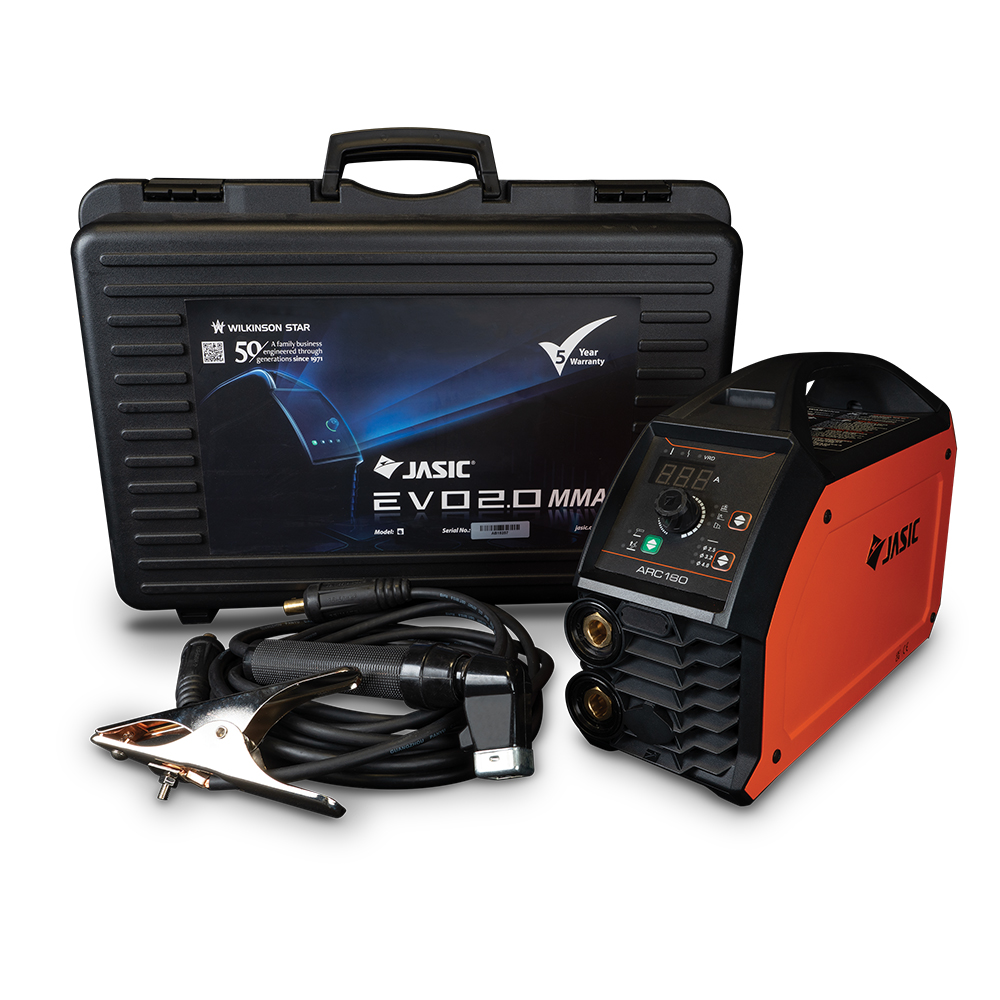

Protective Carry Case, MMA 3Mtr Leads
