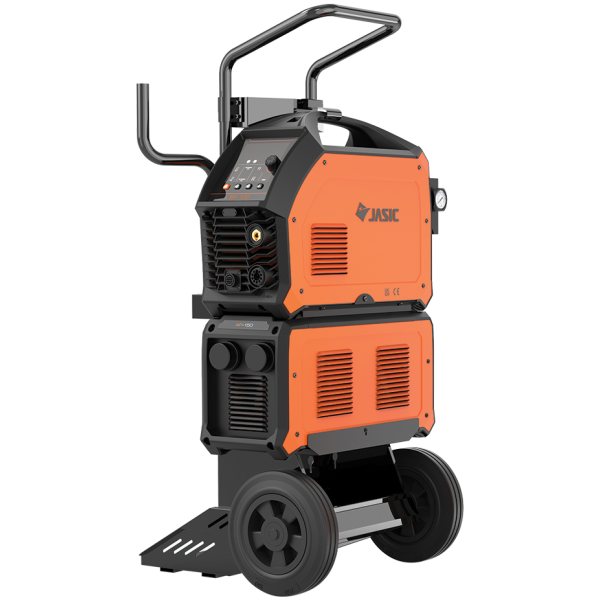

Jasic EVO Plasma Cut 100 NON-HF c/w Compressor 400V
€3,308.33 Inc Vat
Jasic EVO POWER MIG 200 Multi Process 230V
€1,149.68 Inc Vat

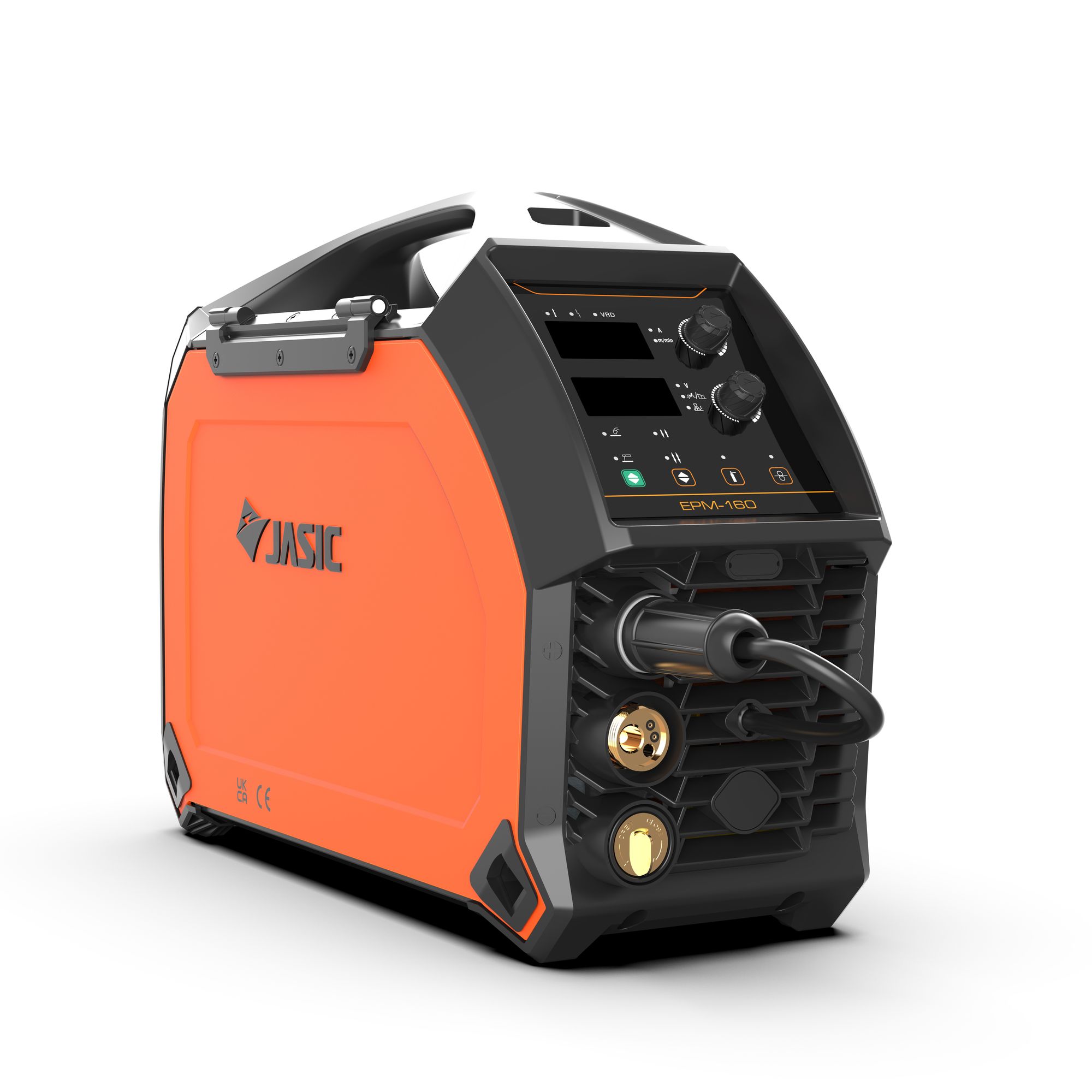

Jasic EVO POWER MIG 160 Multi Process 230V
€957.80 Inc Vat
The EVO POWER MIG 160 is designed to simplify setup and deliver consistent results. It is the perfect blend of precision, quality and value and is the ideal choice for maintenance and light fabrication applications.
It features the same quality and design as the popular EVO series, but is stripped back for essential controls only for fast, hassle free operation.
Description
KEY FEATURES
- Rugged, ergonomic design
- Welding engineer mode
- Consistent and efficient MIG spot welding performance
- Quick factory reset; auto sleep mode
- LED inside wire feeder cabinet; handy accessory storage slot
- ABAP: Active Balancing Air Passage
- Fan on demand
- Voltage Reduction Device (VRD)
- Key power electronic component protection
- Overcurrent and overheat protection
- MIG and MMA
- Essential features for straightforward set up
- Advanced inverter technology
- Digital display
- Digital encoders for precise parameter adjustment
- 2T/4T trigger control
- Variable inductance control
- Gas check and wire inching buttons
- IP23S ingress protection rating
TECHNICAL DATA
| Input voltage | AC230V,50/60 Hz | |
| No load voltage | 67V | |
| MIG | Rated input Current | 37.1A |
| Ieff | 14A | |
| Rated input power | 7.2 kVA | |
| Current range | 20-160A | |
| Rated duty cycle @ 40ºC | 25% | |
| Wire feed speed | 2-14m/min | |
| Wire spool size | D200 | |
| MMA | Rated input Current | 25.4A |
| Ieff | 12.7A | |
| Rated input power | 7.2 kVA | |
| Current range | 20-140A | |
| Rated duty cycle @ 40ºC | 25% | |
| Efficiency | 84% | |
| Power factor | 0.7 | |
| Idle state power | MIG 12W – MMA 32W | |
| Protection class | IP23S | |
| Insulation class | H | |
| Dimensions LxWxH | 565 x 220 x 415mm | |
| Weight | 14.5Kg | |
| Recommended generator size | 10kVA | |
* Generator must have AVR
STANDARD ACCESSORIES
3m MIG Torch, 3m Earth Clamp, Argon Regulator, Gas Hose
