Jasic EVO TIG AC/DC 320 Pulse Water Cooled 400V
€3,740.06 Inc Vat
The EVO TIG 320 Pulse AC/DC Water Cooled is a high-performance digital inverter TIG welder, engineered with advanced digital inverter technology for exceptional welding performance. Its ClearVision display ensures excellent visibility in any lighting, while the digital encoder allows precise, effortless parameter adjustment.
Operators enjoy seamless, real-time control with optional wired or wireless remote solutions. A robust electrical architecture delivers an extended duty cycle and outstanding reliability, even in the harshest conditions, reinforced by an IP23 protection rating.
Featuring Advanced Multi-wave and Hybrid-wave technology, the EVO TIG 320PACDC provides flexibility for any AC welding application, while Pulse technology reduces heat input and improves control on thin materials.

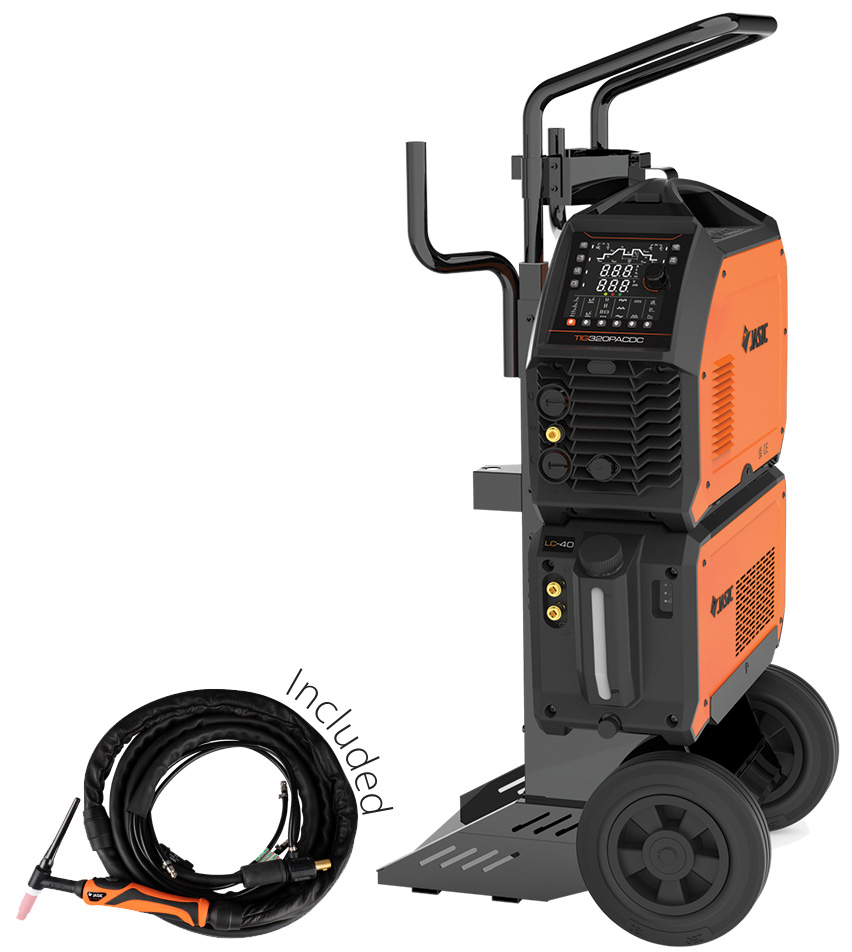

Designed for professionals, the ET-320PACDC is the ideal compact solution for demanding site work and workshop applications on carbon and stainless steels, as well as aluminium. Complete with LC-30 cooler for liquid torch cooling and robust two wheel site trolley, designed for improved manoeuvrability and capable of accommodating a full size gas cylinder.
KEY FEATURES
- TIG AC/DC Pulse with digital control
- Program memory storage
- Multi and hybrid-wave control technology offers ultimate flexibility for any AC welding application
- Microprocessor control of a wide range of functions
- HF and lift TIG
- VRD function
- Auto tungsten tip shaping simplifies tungsten preparation and ensures consistent AC arc start performance
- ClearVision digital display with hollow rotary shaft encoder
- Intelligent fan and cooler control
- Excellent welding characteristics
- AVR generator friendly
- 2T/4T/Cycle and Spot trigger control
- Dash-Arc technology – ensures 99+% arc striking success rate
- Smart Gas technology automatically calculates the optimum post flow gas time
- MMA welding with Hot Start, Anti-Stick and Arc Force control
- Assisted spot welding mode
- Flexible remote control solutions including wired, wireless and mobile app control
- Easy-Set – Simplifies welding parameter settings
- Auto sleep mode with industry leading energy efficiency
TECHNICAL DATA
| Input voltage | 50/60Hz, AC 400V | |
| No load voltage | 71V | |
| TIG | Ieff | 8.7A |
| Rated input power | 11.5kVA | |
| Current range | 10-270A | |
| Rated duty cycle @ 40ºC | 30% | |
| MMA | Ieff | 8.2A |
| Rated input power | 10.1kVA | |
| Current range | DC TIG 10-320A AC TIG 20-320A | |
| Rated duty cycle @ 40ºC | 30% | |
| Efficiency | ≥80% | |
| Power factor | 0.94 | |
| Idle state power | ≤10W | |
| Protection class | IP23S | |
| Insulation class | H | |
| Dimensions LxWxH | 680 x 550 x 1170mm | |
| Weight | 23.8Kg | |
| Recommended generator size | 15kVA | |
STANDARD ACCESSORIES
Water Cooled TIG Torch, Work Return Lead, 2m Gas Hose c/w fittings, Regulator, Water Cooler (LC-40), Trolley (TR-03)
OPTIONAL ACCESSORIES
Wired Remote Control, Wireless Remote Control, Wired Foot Pedal, Wireless Foot Pedal, Mobile Bluetooth APP Module
