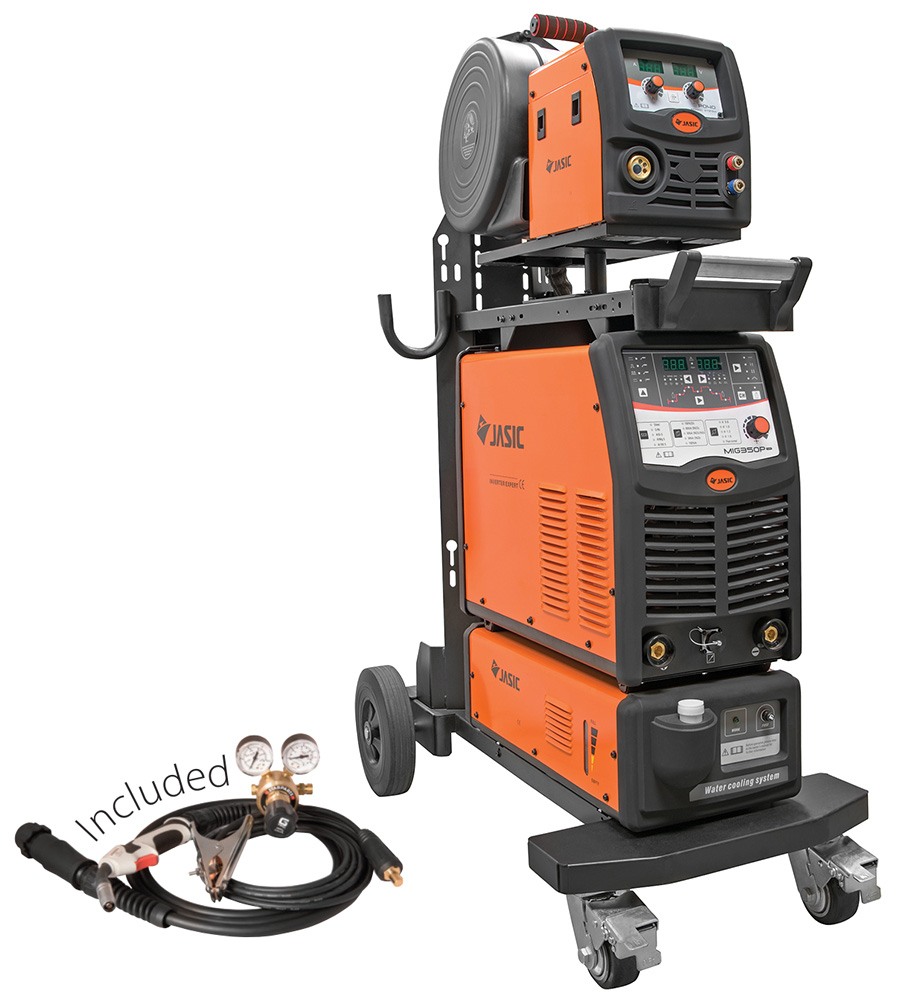

Jasic PRO MIG 350 Synergic Pulse Multi Process Separate 400V c/w 10m Interconnecting Cables
€6,939.66 Inc Vat
The Jasic MIG 350P is a feature-rich pulse MIG/MAG welder with a separate wire feeder, designed for industrial applications.
Built with advanced IGBT inverter technology and pre-set synergic controls, it delivers exceptional welding performance and ease of use.
Its pulsed MIG function offers both single and double pulse modes, helping to reduce heat input and spatter for cleaner, higher-quality welds.
Suitable for carbon steel, stainless steel, and aluminium, the MIG 350P is a versatile solution for demanding fabrication environments.
Description
KEY FEATURES
- IGBT multi process inverter
- Synergic, MIG/MAG pulse, double pulse and DC MMA
- DSP digital technology for optimum welding performance
- 4 roll wire feed unit
- Suitable for 0.8, 1.0, 1.2 and 1.6mm welding wire
- Easy parameter settings for the operator
- Synergic curves for common materials & wire diameters
- Self diagnostic system
- Encoder feedback control of wire feed system
- Power & status LED’s
- Integrated water cooling system
- Inverter trolley takes full size gas bottle
- AVR generator friendly
TECHNICAL DATA
| Input voltage | AC 400V – 50/60 Hz |
| Ieff (A) | 23.6 |
| Input power (kVA) | 21.1 |
| Voltage adjustment range (V) | 17 – 31.5 |
| Current range (A) | 10 – 350 |
| Duty cycle @ 40°C | 350A @ 60% |
| No-load voltage (V) | 70 |
| Wire speed (m/min) | Jan-18 |
| Efficiency (%) | 85 |
| Power factor | 0.85 |
| Protection/insulation class | IP21S/F |
| Dimensions (LxWxH mm) | 1020 x 505 x 1390 |
| Weight (Kg) | 117 |
STANDARD ACCESSORIES
4 Roll Wire Feed Unit, MIG Welding Torch, 10m Interconnecting Cable, Work Return Lead and Clamp, Gas Hose and Regulator, Trolley, Water Cooler
OPTIONAL ACCESSORIES
MMA Leads (WCS25-3WEL)
