Jasic PRO MIG 500 Synergic Multi Process Separate Water cooled 400V
€6,807.74 Inc Vat

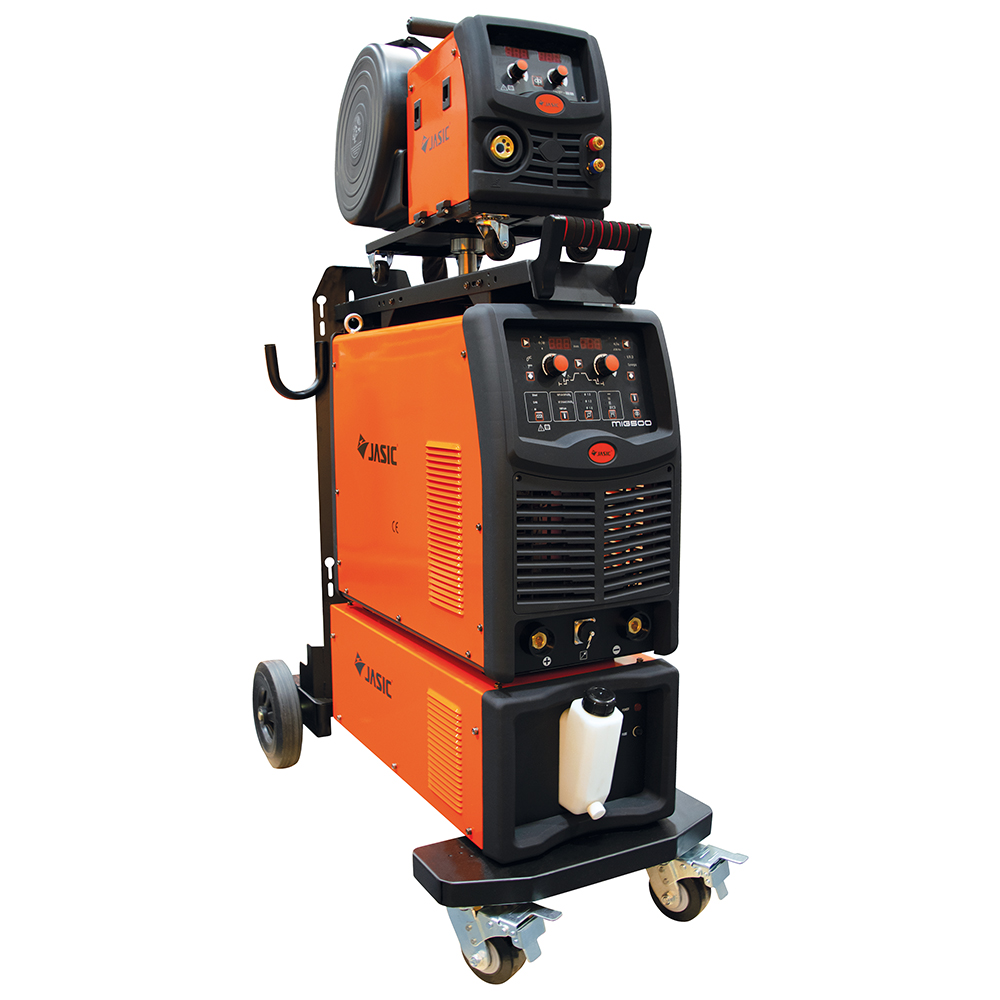

The Jasic MIG 500SYN is a powerful MIG/MAG synergic welding system. It is suitable for use in the most demanding situations and its digital controls and displays make it easy to use.
It has synergic programs for a range of common wires and materials.
Description
KEY FEATURES
- IGBT multi process inverter
- Synergic MIG/MAG, Lift TIG and MMA
- DSP digital technology for optimum welding performance
- 4 roll wire feed unit
- Suitable for 0.8, 1.0, 1.2 and 1.6mm welding wire
- Easy parameter settings for the operator
- Synergic curves for common materials & wire diameters
- Self diagnostic system
- Encoder feedback control of wire feed system
- Power & status LED’s
- Integrated water cooling system
- Inverter trolley takes full size gas bottle
- AVR generator friendly
TECHNICAL DATA
| Input voltage | 400 +/- 20% 3P | |
| Ieff (A) | 28.7 | |
| Input power (kVA) | 24.2 | |
| Voltage adjustment range (V) | 15.5 – 50 | |
| Current range (A) | MIG 60 – 500 | MMA 30 – 500 |
| VRD voltage MMA (V) | 15 | |
| Duty cycle @ 40°C | 500A @ 50% | |
| No-load voltage (V) | 80 | |
| Wire speed (m/min) | 1.5 – 22 | |
| Efficiency (%) | 91 | |
| Power factor | 0.92 | |
| Protection/insulation class | IP23S/F | |
| Dimensions (LxWxH mm) | 1020 x 505 x 1390 | |
| Weight (Kg) | 129 | |
STANDARD ACCESSORIES
4 Roll Wire Feed Unit, MIG Welding Torch, 5m Interconnecting Cable, Work Return Lead and Clamp, Gas Hose and Regulator, Trolley, Water Cooler
OPTIONAL ACCESSORIES
MMA Leads (WCS25-3WEL)
