Jasic PRO TIG 200P AC/DC Pulse Anologue Water Cooled 230V
€2,870.21 Inc Vat
The Jasic TIG 202 Analogue leverages advanced inverter technology for AC/DC TIG welding from a single-phase power supply.
Designed for professionals who value straightforward analogue control in an increasingly digital world, the JT-202A combines simplicity with performance.

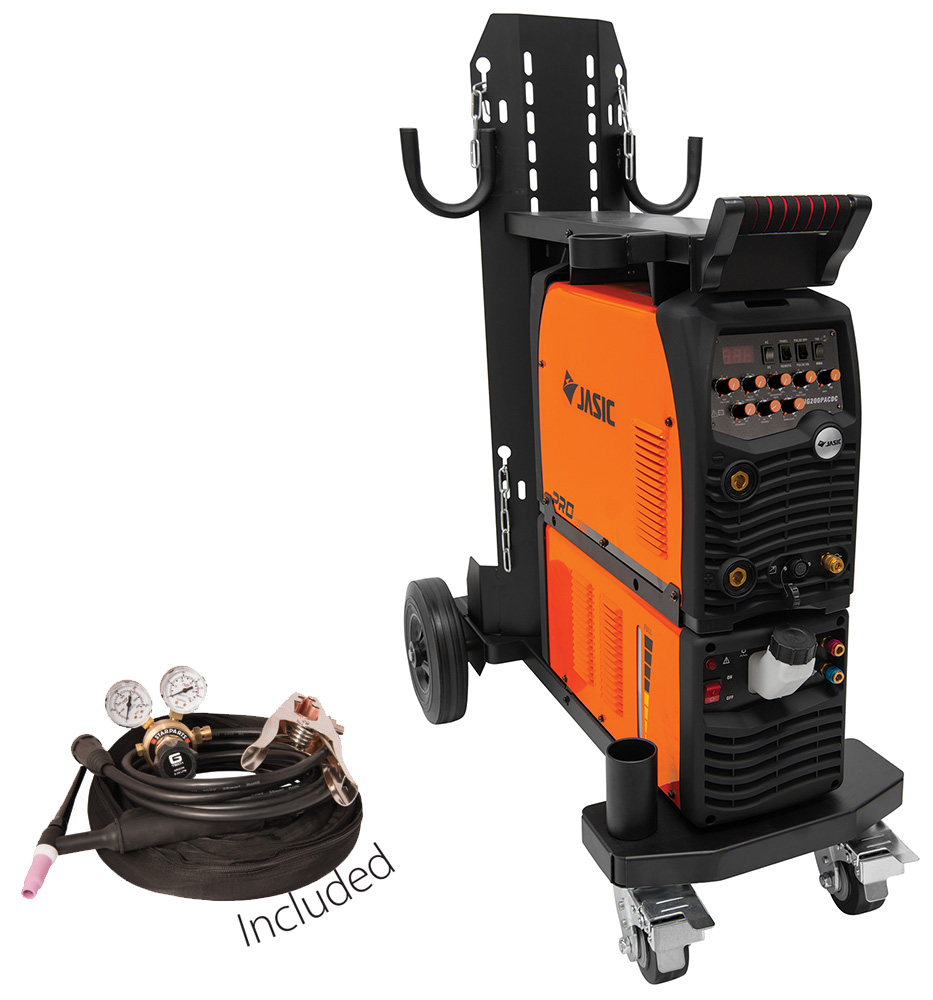

Offering alternating and direct current outputs, the JT-202A is the ideal choice for professionals looking to weld both aluminium and steel materials. Its intuitive knob-based interface delivers precise control without compromising on welding quality, thanks to the utilization of modern inverter technology. Supplied with a robust four wheel trolley and water cooler for liquid torch cooling.
KEY FEATURES
- TIG Pulse AC/DC with analog control
- Digital display
- Peak current control, 2T/4T
- Pre-post flow time, up/down slope
- Pulse adjustment
- Pulse frequency, pulse duty, arc force, cleaning width
- Remote control interface
- AC function for aluminium and aluminium alloys
- DC TIG function for carbon steel, copper and non-ferrous metals
- Smooth arc and stable welding performance
- Heavy duty 35/50 dinse sockets
- VRD Function
- AVR generator friendly
TECHNICAL DATA
| Input voltage | AC 230V – 50/60 Hz | |
| Ieff (A) | 17 | |
| Input power (kVA) | 6.9 | |
| Current range (A) | TIG 5 – 200 | MMA 10 – 160 |
| Duty cycle @ 40°C | TIG 200A @ 25% | MMA 160A @ 30% |
| No-load Voltage (V) | 65 (7V VRD) | |
| Protection/insulation class | IP21S/B | |
| Dimensions (LxWxH mm) | 940 x 420 x 1130 | |
| Weight (Kg) | 70 | |
STANDARD ACCESSORIES
TIG Welding Torch & Adaptor, Work Return Lead and Clamp, Gas Regulator, Trolley, Water Cooler
OPTIONAL ACCESSORIES
Foot Control Unit (JFC-08)
