Jasic EVO TIG DC 300 Pulse Water Cooled 400V
€2,588.60 Excluding Vat
Jasic PRO TIG 200P AC/DC Pulse Analogue 230V
€1,258.60 Excluding Vat

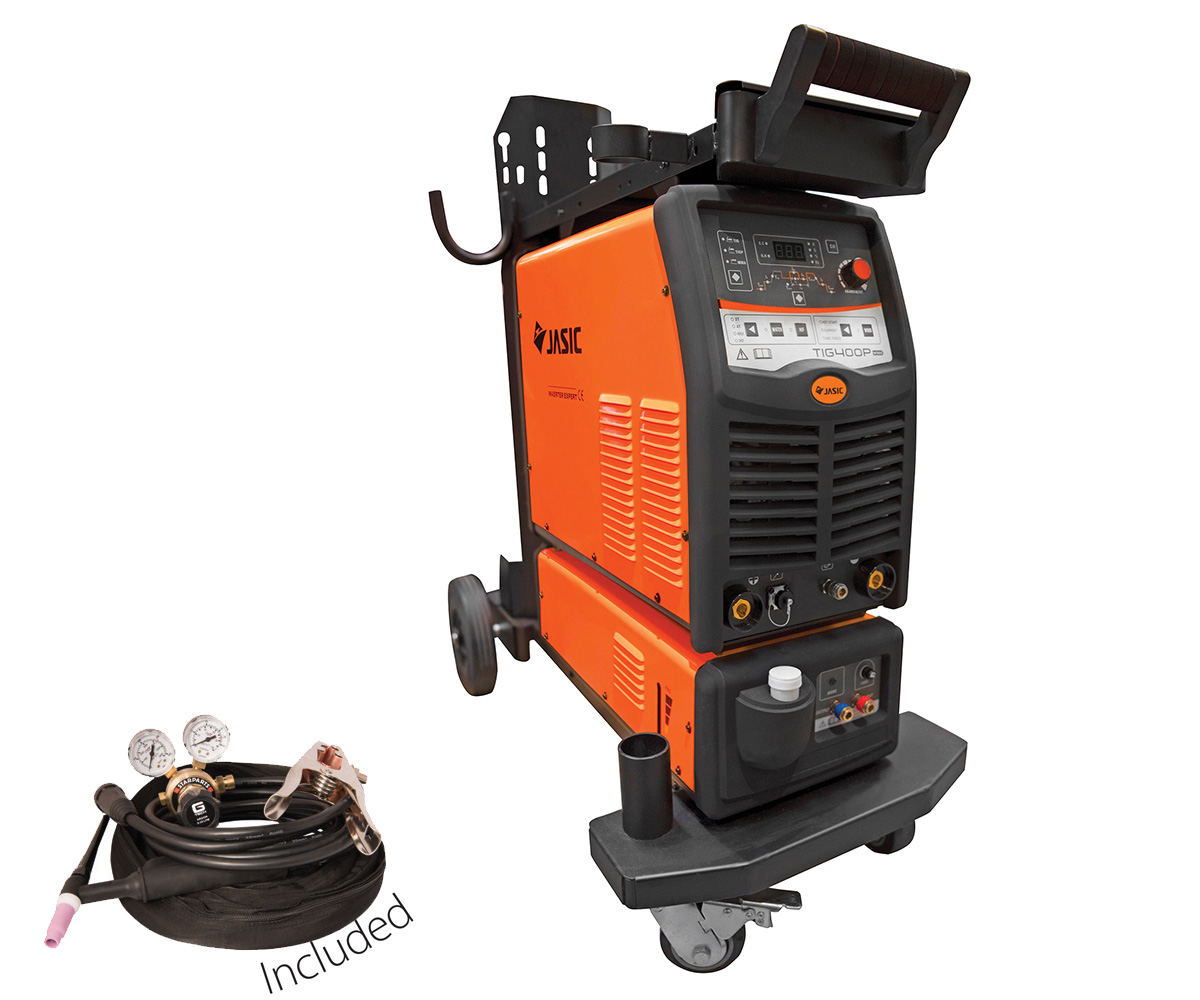

Jasic PRO TIG DC 400 Pulse Water Cooled Digital 400V
€3,759.00 Excluding Vat
The Jasic TIG 400 Pulse is equipped with industrial grade IGBT components and an MCU chip for high accuracy and performance.
This technologically advanced inverter with a digital panel allows for software upgrades and provides 8 channel automatic storage of the welding parameters.
This modular design TIG welding system includes the trolley and water cooler as standard.
Description
KEY FEATURES
- Industrial grade IGBT inverter technology
- DC Pulse TIG/MMA with VRD function option
- MCU chip for high accuracy and consistency
- HF or Lift arc ignition, 2T/4T, spot-time
- Up/down slope, pre/post flow, crater/initial/weld current
- Digital panel with interface for easy software upgrades
- Gas test function in DC TIG mode
- Modular design with trolley and water cooler included
- Automatic 8 channel storage of welding parameters
- On demand fan and water cooling
- MMA remote capability
- AVR generator friendly
TECHNICAL DATA
| Input voltage | AC 400V – 50/60 Hz | |
| Ieff (A) | 14 | |
| Input power (kVA) | 18 | |
| Current range (A) | TIG DC 5 – 400 | MMA DC 30 – 400 |
| Duty cycle @ 40°C | 400A @ 50% | |
| No-load voltage (V) | 68 | |
| Efficiency (%) | 85 | |
| Power factor | 0.96 | |
| Protection/insulation class | IP21S/F | |
| Dimensions (LxWxH mm) | 760 x 360 x 585 | |
| Weight (Kg) | 90 | |
STANDARD ACCESSORIES
TIG Welding Torch & Adaptor, Work Return Lead and Clamp, Gas Regulator, Trolley, Water Cooler
OPTIONAL ACCESSORIES
Foot Control Unit (JFC-09)
