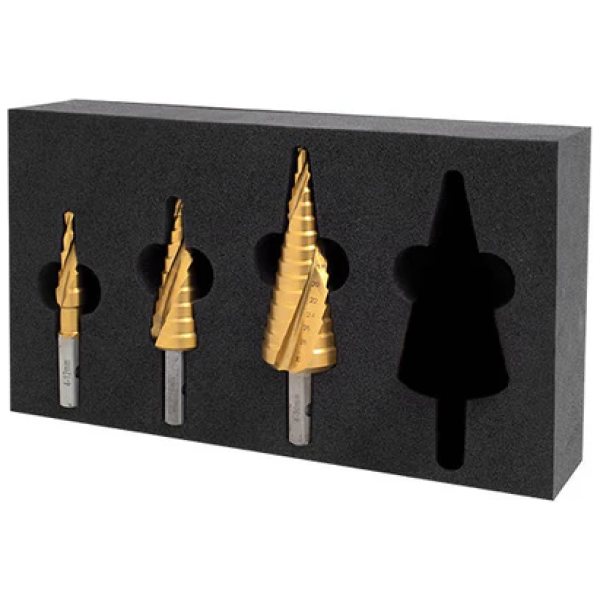

HMT VersaDrive® Step Drill InsertFoam Set
€336.07 Inc Vat
HMT VersaDrive® TurboTip ImpactaStep Set
€525.59 Inc Vat

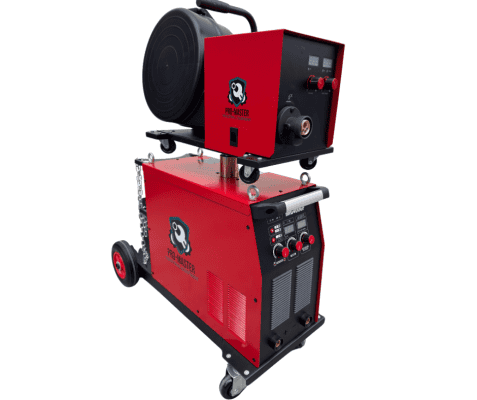

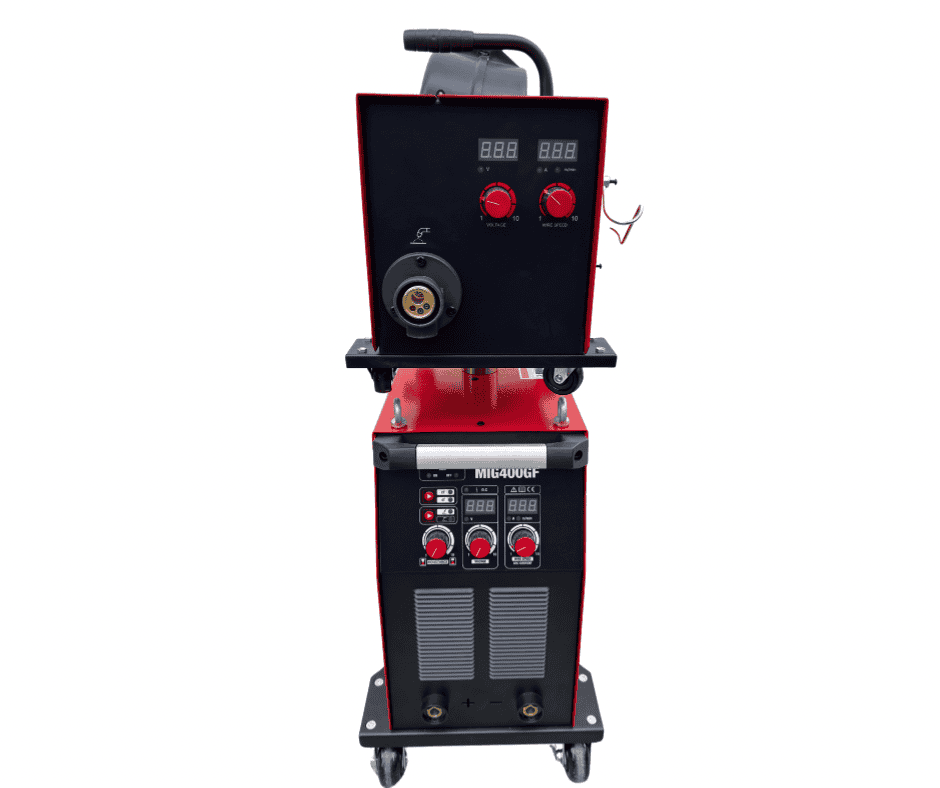

ProMaster MIG 400
€2,816.70 Inc Vat
1、MIG/MMA Mode.
2、MMA mode with VRD control.
3、2T/4T Mode.
4、With output polarity conversion.
5、With perfect overcurrent,overheating,under voltage protection.
6、Current and voltage figure with seperate digital display.
7、3 Duct design(Waterproof, anti dust, anti corrosion).
8、The high rate of sustained load can be used for industrial users.
Out of stock
Description
1、MIG/MMA Mode.
2、MMA mode with VRD control.
3、2T/4T Mode.
4、With output polarity conversion.
5、With perfect overcurrent, overheating, under voltage protection.
6、Current and voltage figure with seperate digital display.
7、3 Duct design(Waterproof, anti dust, anti corrosion).
8、The high rate of sustained load can be used for industrial users.
| Parameter | MIG400GF |
|---|
| Power Supply Voltage | 3-Phase ~380 V ± 15% |
| Frequency (Hz) | 50 / 60 |
| Rated Input Power (kW) | 16 |
| Rated Input Current (A) | 22.9 (MIG) / 21.3 (MMA) |
| Duty Cycle (at 40 °C, 10 min) | 60% @ 400 A / 100% @ 310 A |
| No-Load Voltage (V) | 75 |
| Welding Current Range (A) | MIG 50 – 400 A / MMA 40 – 400 A |
| Welding Voltage Range (V) | 15 – 38 V |
| Efficiency (%) | ≥ 85 |
| Power Factor | 0.93 |
| Protection Class | IP21 |
| Insulation Class | F |
| Cooling Method | AF (Air-Forced) |
| Wire Diameter (mm) | MIG: 0.8 / 1.0 / 1.2 / 1.6 • MMA: 1.6 – 5.0 |
| Net Weight (kg) | 74.6 |
| Gross Weight (kg) | 89.6 |
| Packing Dimensions (mm) | 1035 × 400 × 800 mm |
