VersaDrive™ V85T Magnet Drill

Name: VersaDrive™ V85T Magnet Drill
Availability: InStock

Price range: €2,547.83 through €2,727.13 Inc Vat

MARKET LEADING PERFORMANCE

The HMT VersaDrive V85T is the first UK Built portable drilling machine range designed for the 21st century, designed to meet a need in the market for a high-performance, lowmaintenance, industrial quality portable drilling unit and to deliver constant performance in the most challenging drilling environments and fabrication conditions.

Kit Type

Voltage

Clear

Compare

SKU: N/A Categories: Cordless Power Tools, Holemaker Technology Range, MAGNET DRILLS, Magnetic Drills

Description

Technical Specification

CUTTER SIZE RANGE	12 – 85mm TCT
MAX CUTTER CAPACITY	85mm TCT
TWIST DRILL CAPACITY	27mm
MAX TAP CAPACITY	M27
MAX COUNTERSINKING	55mm
LENGTH	325mm
WIDTH (Inc Handles)	240mm
HEIGHT (Min-Max)	425 – 645mm
STROKE	220mm
WEIGHT	20.5 kg
MAGNET (L X W)	200 x 100mm
MAGNETIC ADHESION	1750 kgs
MOTOR POWER	1800w
TOTAL POWER	1920w
SPEED RPM (No Load)	60 – 140 / 200 – 470
SPINDLE	MT3
ARBOR	19,05 mm (¾”) Weldon
TAKES CHUCK	Yes
COOLANT SYSTEM	Gravity Oil Fed
WARRANTY	2 Year

Standard Kit: supplied with handles, heavy duty metal sliding guard system, MT3 broaching arbor, VersaDrive arbor. Supplied in transport packaging WITHOUT Case to reduce cost for users who do not need or wish to store it inside a case.

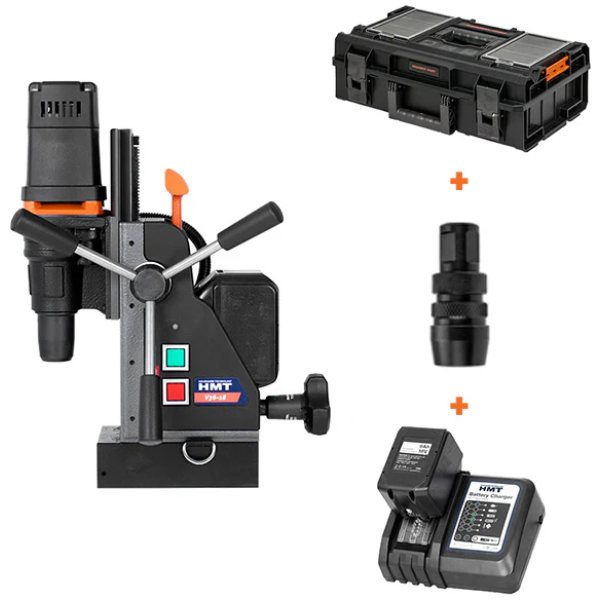

Pro Kit: As above plus heavy duty, waterproof, shock-resistant site case, gravity fed coolant system and VersaDrive Quick Change Arbor in place of the standard VersaDrive Arbor.
