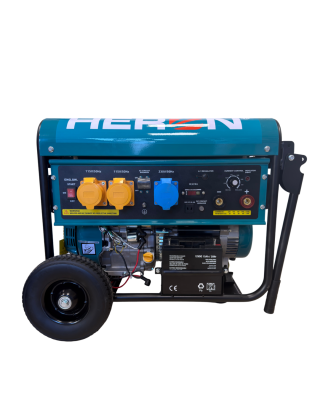

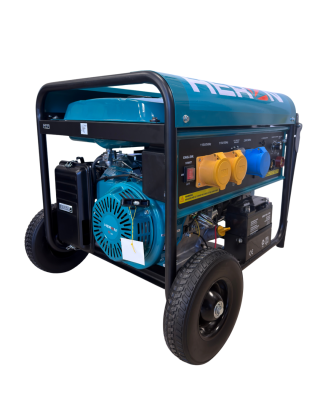

Welding Generator 220AMP Petrol
€1,955.70 Inc Vat
This powerful and versatile petrol welding generator designed for demanding on-site applications. Delivering up to 220 amps of welding current and a 5,000W rated AC output, it combines reliable welding performance with robust generator capability in one compact unit.
Powered by a 439cc petrol engine with electric start, this unit supports electrodes from 2.5–6.0mm, making it suitable for a wide range of welding tasks. With AVR, brush alternator, AC circuit breaker, and fuel meter as standard, it ensures stable output, safety, and ease of operation. Ideal for workshops, construction sites, and remote locations where dependable power and welding performance are essential.
Specification：
Welder：
Max.current：220A
Insulation class：H
Protection class：1P21
Input capacity：5.0 KVA
Current range：70~220Amps
No-load voltage：75V
Rated duty：34%-220A
Welding electrode ：2.5-6.0mm
Sound pressure level @ 7 m：78dB(A)
Acoustic power Level @ 7 m：99dB(A)
Generator
AC Frequency:60Hz
AC Voltage: 120V～240V
Surge AC Output:5500W
Rated AC Output：5000W
Electric start Lead Acid battery 12V/15Ah
Engine
Displacement：439cc
Bore x Stroke：90x 69 mm
Maximum Power Output ：15 PS / 3600rpm
Starting System：Electric start
Oil Tank Capacity：1.1 L
Fuel Tank Capacity：25 L
Fuel Consumption rate：340g/Kw.h
Carton Dimensions (L x W x H)：00 x 560 x 575 mm
AVR，Brush Alternator，AC Circuit Breaker，Fuel Meter
