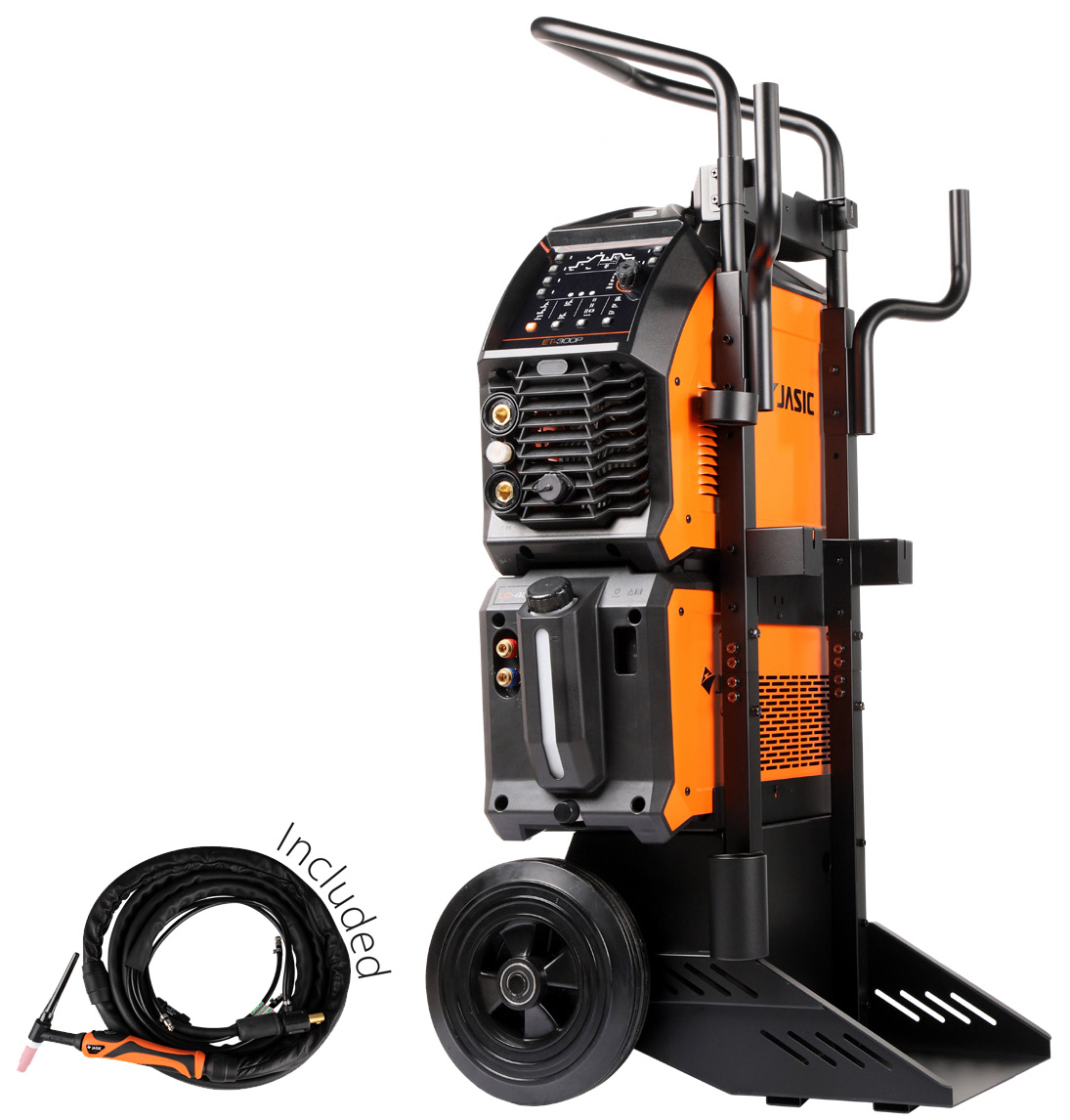

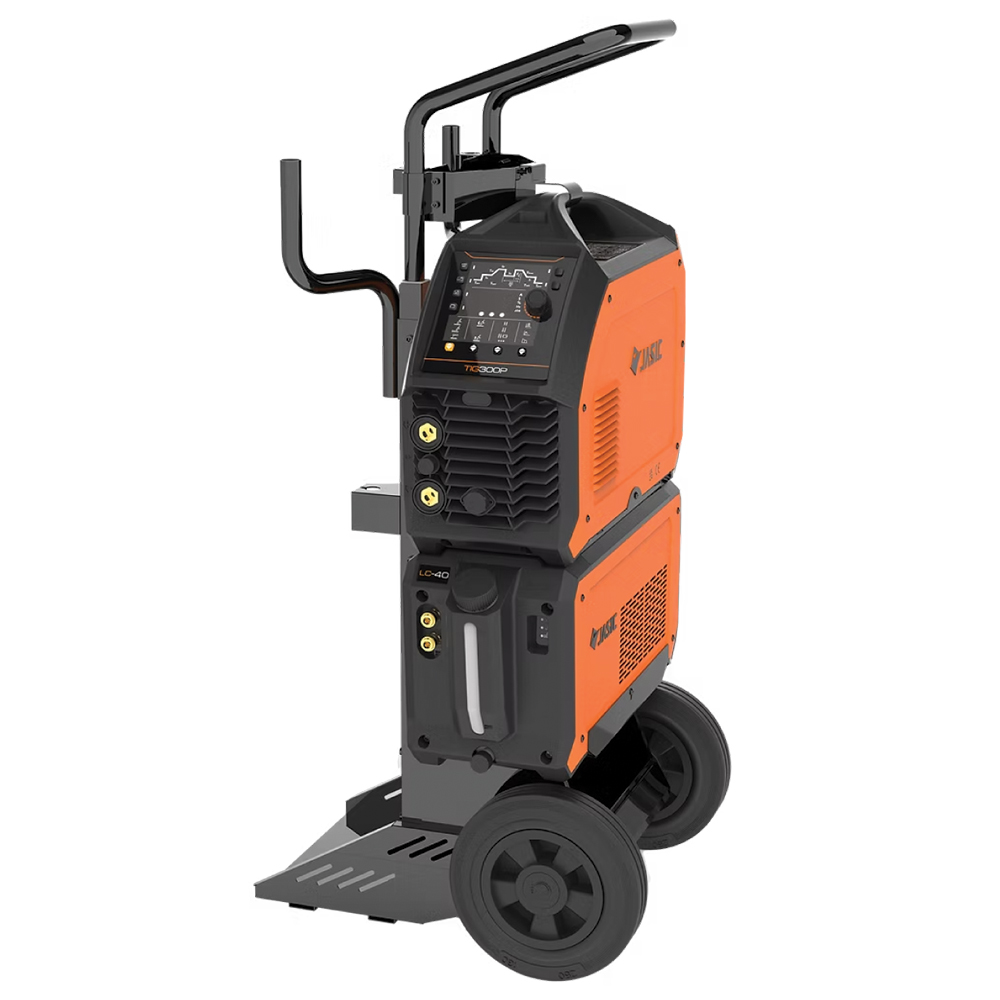

Jasic EVO TIG DC 300 Pulse Water Cooled 400V
€2,876.60 Inc Vat
The EVO TIG 300 Pulse Water Cooled is a high-performance digital inverter DC Pulse TIG welder, engineered with advanced inverter technology for exceptional welding performance. Its ClearVision display ensures optimal visibility in any lighting environment, while the digital encoder allows precise and effortless parameter adjustment.
Operators benefit from seamless, real-time control with optional wired and wireless remote solutions. The robust electrical architecture system delivers an extended duty cycle and outstanding reliability, even under the harshest conditions—further reinforced by its IP23 protection rating.
With Pulse technology, the EVO TIG 300P can help to reduce heat input, offering superior control on thin materials. Designed for professionals who demand uncompromising performance, flexibility, and durability, the ET-300P-WC is the ideal solution for both demanding site work and workshop applications on carbon and stainless steels. Complete with LC-30 cooler for liquid torch cooling and robust two wheel site trolley, designed for improved manoeuvrability and capable of accommodating a full size gas cylinder.
KEY FEATURES
- TIG AC/DC Pulse with digital control
- Program memory storage
- Multi and hybrid-wave control technology offers ultimate flexibility for any AC welding application
- HF and lift TIG
- VRD function
- ClearVision digital display with hollow rotary shaft encoder
- Intelligent fan and cooler control
- Excellent welding characteristics
- AVR generator friendly
- 2T/4T/Cycle and Spot trigger control
- Dash-Arc technology – ensures 99+% arc striking success rate
- Smart Gas technology automatically calculates the optimum post flow gas time
- MMA welding with Hot Start, Anti-Stick and Arc Force control
- Assisted spot welding mode
- Flexible remote control solutions including wired, wireless and mobile app control
- Easy-Set – Simplifies welding parameter settings
- Auto sleep mode with industry leading energy efficiency
TECHNICAL DATA
| Input voltage | 50/60Hz, AC 400V | |
| No load voltage | 70V | |
| TIG | Ieff | 9.2A |
| Rated input power | 10kVA | |
| Current range | 10-270A | |
| Rated duty cycle @ 40ºC | 40% | |
| MMA | Ieff | 7.9A |
| Rated input power | 8.5kVA | |
| Current range | 5-300A | |
| Rated duty cycle @ 40ºC | 40% | |
| Efficiency | ≥85% | |
| Power factor | 0.94 | |
| Idle state power | <8W | |
| Protection class | IP23S | |
| Insulation class | H | |
| Dimensions LxWxH | 680 x 550 x 1170mm | |
| Weight | 32.2Kg | |
| Recommended generator size | 15kVA | |
STANDARD ACCESSORIES
Water Cooled TIG Torch, Work Return Lead, 2m Gas Hose c/w fittings, Regulator, Water Cooler (LC-40), Trolley (TR-03)
OPTIONAL ACCESSORIES
Wired Remote Control, Wireless Remote Control, Wired Foot Pedal, Wireless Foot Pedal, Mobile Bluetooth APP Module
